Using Agent API

Agent API can be used to control client behavior locally without the need for UI. It is supported only for desktop Agents.

Enabling and configuring agent API

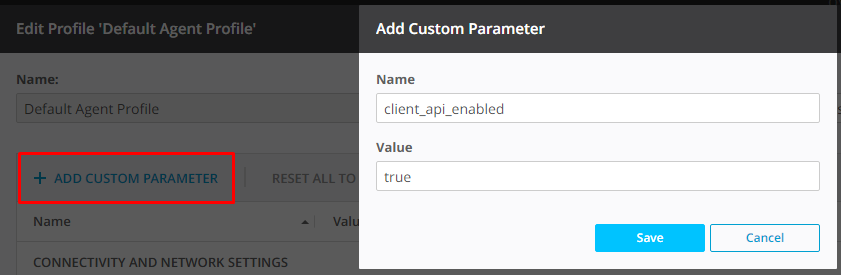

To enable Agent API for an agent, add the client_api_enabled custom parameter with a value true to an Agent Profile.

360016287540

Agent binds to 127.0.0.1 interface to listen to API calls.

Note

It is not possible to bind it to a different interface.

Agent API receives requests over 3840 port by default, but it can use a different port. Specify the desired port as a value of a client_api_port custom parameter.

By default, a token is included in all API calls to protect against cross-site request forgery. Add custom parameter client_api_token_auth with a value false to disable the need for token when accessing API.

API calls

Get Token

Get security token. Use token in subsequent API calls to prevent cross-site scripting attack.

GET http://localhost:3840/api/v3/token

Sample response

    { "token": "WV44TS4MZCAUXLBJ2MRX6MVCW4" }

Get Status

Allows to see current status of the client.

GET /api/v3/client?token=xxx

Sample response

{
    "deviceid": "EA...JA",
    "deviceidHex": "201...20",
    "name": "AgentName",
    "paused": false,
    "restartRequired":"true", //from v4.1.0. Missing, if restart of the Agent is not required.
    "server": {
        "addr": "management_console.com",
        "last_seen": <unix_timestamp>,
        "state": "CONNECTED"
    }
}
Field Description
state Possible values:
  • NOT_CONFIGURED - connection to MC is not yet configured for this Agent. It's not connected to any MC.
  • NOT_CONNECTED - Agent is not connected to the configured MC.
  • CONNECTING - Agent is establishing connection to the configured MC.
  • CONNECTED - Agent is connected to the configured MC.
  • PENDING_APPROVAL - Agent is connected to the configured MC, awaiting for being approved or declined.
  • DECLINED - Agent's connection to MC was declined.
  • STOPPED - Network is not available on Agent's host.
  • WAITING_FOR_INCOMING_CONNECTION - Available for Proxy Server mode.

Get status of jobs

Note

Available in Resilio Active Everywhere 3.0 and newer.

Reports status for job runs or a specific job run. Fields are self-descriptive.

GET /api/v3/runs
GET /api/v3/runs/{run_id}

Sample response

[
    {
    "down_speed": 177840,
    "errors": [],
    "eta": 101,
    "files_completed": 208,
    "files_total": 209,
    "id": 384,
    "name": "FullSync",
    "path": "C:\\UserData\\FullSync",
    "peers_count": 1,
    "peers_count_proxied": 0,
    "permission": "rw",
    "run_id": 543,
    "size_completed": 126936039,
    "size_total": 144943317,
    "status": "syncing",
    "transferred_down": 107847067,
    "transferred_up": 0,
    "type": "folder",
    "up_speed": 0,
    "last_synced": 1702985796
    }
]
Field Description
type Possible values:
  • folder - Synchronization job
  • transfer - Distribution, Consolidation job
  • script - Script job
status Possible values, applicable to all Job types:
  • error
  • loading
  • paused
  • writing acl
  • processing files
  • indexing
  • low priority
Values applicable to Synchronization Jobs:
  • mounting selective sync volume
  • no peers
  • syncing
  • synced
Values applicable to Distribution and Consolidation Jobs:
  • invalid state
  • no peers
  • waiting for files from source
  • downloading
  • seeding
  • cleaning up destination folder
  • waiting for scheduled script
  • executing pre-indexing script
  • executing post-download script
  • executing complete script
  • archiving script logs
  • successfully finished
  • expired
Values applicable to Script Jobs:
  • expired
  • successfully finished
  • executing script
last_synced Unix timestamp for the last of time agent switched from non-zero data difference to zero data difference (which usually indicates that agent finished syncing).

Pause / Resume

Allows to pause/resume agent instantly or set resume timer to automatically resume after some time. The pause here stops all agent activities, including network activity, like file tree merge and service information exchange between agents. While agent is paused, it reports to the Management Console ‘paused’ state for every transfer.

PATCH /api/v3/client?token=xxx&paused=true&resume_timer=60

Applicable parameters

Parameter Description
paused Can be true or false to pause and unpause agent respectively.
resume_timer optional, a time interval after which agent unpauses, takes value in seconds If resume_timer is omitted, agent will remain paused until restarted or unpaused over another call with paused=false. Whenever agent gets restarted or unpaused, resume_timer is reset.

Restart the Agent

Note

Available in Resilio Active Everywhere 4.1 and newer.



PATCH /api/v3/client

Body:

    {"restart": true}

Set tag

Note

Available in Resilio Active Everywhere 2.9.3 and newer.

Assigns a tag with value to the Agent. Creates new tag if it does not exist or updates existing one if tag already exists. Allows agent to migrate between groups with automatic sorting rules, as well as pause-unpause jobs using the "Pause job if" parameter in job profile (only available starting from 2.9.3).

PATCH /api/v3/tags?token=xxx

Body:

    {
      "tags": [
        {
          "name":"TAG_NAME",
          "value":"TAG_VALUE"
        }
      ]
    }

Sample response

{}

Get tags

Note

Available in Resilio Active Everywhere 2.10.0 and newer.

Lists all tags and their values for an agent.

GET /api/v3/tags?token=xxx

Response sample:

    {
      "tags": [
        {
          "name": "NAME1",
          "value": "VALUE1"
        },
        {
          "name": "NAME2",
          "value": "VALUE2"
        }
      ]
    }

Get Files, Patch Files

Note

Available in Resilio Active Everywhere 5.0.9 and newer.

Lists, hydrates and dehydrates the files in a TSS folder. Requires system_native_placeholders: false and enable_placeholders: false parameters in the Agent Profile in order to disable creation of system placeholders on the storage.

Lists all files in the given directory

GET /api/v3/files
Parameter Type Required Description
folder_id integer Yes Job run id of the folder (as from GET runs call).
path string No Relatvie path inside the folder tree. Empty by default (root).
list boolean No True by default. Defines the response format (see below).

list=true (by default): array of file objects.

  • If path points to the list (not the root and not the folder) - array with one element (the node itself).
  • If path points to the root or the folder - array with direct child elements.
  • If path is not found - empty array [ ] (error is not reproted, but is recoded in the Agent's debug log).

list=false: one object with information about the node by path. If the node is not found - empty object { }.

Response sample:

{
  "name": "string",
  "disk_name": "string",
  "type": "string",
  "state": "string",
  "download": "int (bool)",
  "always_download": "int (bool)",
  "invalidated": "int (bool)",
  "ignored": "int (bool)",
  "time": "int64",
  "mtime": "int64",
  "ctime": "int64",
  "disk_mtime": "int64",
  "disk_ctime": "int64",
  "inode": "int64",
  "perm": "int64",
  "ignored_modified": "int64",
  "exists_locally": "int64",
  "etag": "string",
  "hash": "string",
  "is_system_placeholder": "int",
  "owner": "string",
  "has_remote_copy": "int64",
  "pvi": {
    "type": "string",
    "size": "int64",
    "mtime": "int64",
    "ctime": "int64",
    "hash": "string"
  },
  "errors": [
    "int64"
  ],
  "folder_exists_explicitly": "int64",
  "have_pieces": "int64",
  "total_pieces": "int64",
  "size": "int64",
  "link_target": "string",
  "acls": {}
}
Changes the stauts of the TSS (download / always_download) for one or several paths inside the folder. Works only for TSS folders with system palecholders disable, as instructed above.

PATCH /api/v3/files
Parameter Type Required Description
folder_id integer Yes Job run id of the folder (as from GET runs call).
download boolean Conditional Select/Unselect for regular file fetch.
always_download boolean Conditional Select/Unselect for file pin.
path string Conditional One location for hydration/pinning.
paths array Conditional Several locations for hydration/pinning.

Requirements:

  • At least one rule download / always_download must be set.
  • At least one path/paths must be set.
  • Combination download=false and always_download=true is not allowed. This is a contrdictory call.

Response sample:

Always HTTP 200 at the sucessful validation (even is some paths are not found):

{
  "status": 0,
  "error": 0,
  "processed": <int64>,
  "not_found": ["<path1>", "<path2>", ...]   // returned only if not empty
}
