Advanced custom parameters

Resilio Active Everywhere is a very flexible software solution that works in a wide range of use cases and environments. Available configuration parameters are widely represented but not limited to those mentioned in the Job or Agent profile. There are many more hidden custom parameters for advanced tuning and getting the maximum value.

Some of them serve well for some of most wide spread use cases and are covered in this section.

Below you will find a list of advanced parameters that can be used in the Agent Profile, or Job profile if mentioned specifically.

Proceed with caution

Use these parameters with caution and only when fully understanding what it entails. Each of these has side effects and may be incompatible with some other non-default parameters.

Name	Default value	Description
tunnel_compress_stream	false	Made visible in Agent Profile in Resilio v3.0.0. Helps lowering the network traffic. Note that enabling this option will increase the CPU load due the additional resources required to compress and decompress the data.
disk_worker_pool_size	1	Number of threads each disk uses for disk operations. Increasing the number shall improve performance on high-latency CIFS with multiple worker threads support. Applicable for high speed drives (fast SSD, raid). May be used to find best performance on network shares. Can be increased when syncing with a cloud storage, see here for more details.
disk_worker_per_job	false	If set to true, a job will have standalone drive thread and perform synchronization if parallel with other jobs. On the other hand, multiple parallel threads may saturate drive's capacity. For agents to perform indexing in parallel as well, set parameter parallel_indexing as true as well. Requires restarting the Agent for changes to be applied.
direct_torrent_enabled	true	If a file size is smaller than the current speed, it won't be broken into pieces. This may reduce transfer time as fewer requests are made and fewer pieces are transferred, but if transfer is interrupted, file will be re-synced from start. Works only for non pre-seeded case. If you choose to disable it, it shall be done for both - sender and receiver of files at the same time. If it's disabled for receiving agent, the Agent will request file pieces, without significant impact on performance. But it's it's disabled for sender only, the receiver will request full file, and when sender rejects this, will switch and request file pieces, which leads to excessive work traffic between the Agents.
build_script_working_dir	false	If set to true, and pre-indexing trigger in Distribution or Consolidation job has a command to create the source path, it will be created.
lazy_indexing	true	Made visible in Job Profile in v3.2.1. Enabled lazy_indexing means that the Agent will not hash any files until some other Agent requests to download it. It improves speed of merging folder tree and getting the job into balance (especially when only few files differ on different agents). On the other hand, not having a file hash is a great risk in cases when files are renamed, new Agents appear in the mesh, etc. For more information on using this parameter, see Synchronizing Pre Seeded Folder. Some other parameters require this option to be either on or off. Can be added to either Agent or Job profile.
transfer_job_force_owner_to_hash_file	true	! Important ! Starting with Active Everywhere 4.0, we recommend retaining file hashes. Read more about it here. Made visible in Job Profile in v3.2.1. It is similar to lazy_indexing, and applies to the file owner - the Agent which updated the file last. This parameter must comply with lazy_indexing, see here for usage examples. Disabling hashing at all, while "Disable differential sync" is Yes in Agent Profile does not make sense and will cause job to stuck. Disabling it is not advisable for Synchronization jobs, especially if agents tend to go offline periodically as other agents won't be able to download the files until file owner is back online.
connect_more_peers_interval (deprecated in v3.0) state_notify_interval update_peer_stat_interval	1, sec 10, sec 5, sec	Be sure to add them to all agents in the job. These three parameters define how frequently agents do the following accordingly: Create queue for download merge folder tree update upload/download difference with each other. Increase these up to 2-5 minutes for large numbers of Agents or files. Agent will do this less frequently and thus spend more resources on transferring files, but as a side effect current status and job performance statistics will not be updated in real time.
net_default_timeout	30, sec	Timeout for peers connections. Increase up to 3-5 minutes for unstable networks or if there are a lot of agents and files in the job.
transfer_peers_limit	50, integer	Number of agents that can be connected to each other at a time. Increasing this parameter will force agents to be busy with establishing and keeping connections to each other. It will impact the job performance and load the Agents. It makes sense to decrease it especially for unstable networks.
ignore_mtime_assign_errors	false	If an Agent cannot change file's attributes (mtime or x flag), the Agent reports error and job stalls. If it's True, the Agent will skip the error, write the current mtime on disk and preserve the correct one in the database. Other attrs are dropped. The greatest side effect is that files will get current timestamp on disk - it may affect other applications that work with the files or files will be considered newer if the job is recreated (see pre-seeded usecase)
reset_file_error_interval	60, sec	How often the Agent will try to re-download a file that failed to be synced for a reason, again. If there are a lot of non-synced files in a job, it makes sense to increase the value up to 1800 (which is 30 minutes). Otherwise, the Agent will be busy only trying to re-sync failed files.
recheck_locked_files_interval		Made visible in Agent Profile in v3.2.1. Similar to reset_file_error_interval, but refers to local locked files. It is the frequency at which the Agent will come back and see if the file is still locked (in cases when it's not notified by the system). Default value is 600. Put there 60 (=1 minute) if it fits your use case. Don't put a too frequent interval as the Agent will be only busy with rechecking the file. Don't put a too rare interval either as some delays in synchronization will be observed.
transfer_job_exact_ctime_timestamps	-1, special	The parameter defines the Agent's strategy when synchronizing creation timestamp (ctime) of a file and taking it into account in pre-seeded use case. -1 (auto, it basically sets values 1 and 2 for different agents) 0 (strict comparison, meaning the Agent will compare ctime as well) 1 (Agent assumes that ctimes are equal if local ctime is newer than ctime on remote Agent, or if the remote Agent cannot write ctime on disk, use it for cloud Agents) 2 (Agent assumes that ctimes are equal if local ctime is older than remote, use it for agents that sync with cloud agents) 3 (Agents asume that ctime are always equal. Setting the parameters as 3 means that Agents won't synchronize ctime)
transfer_job_verify_downloaded_files	false	Works for destination agents in Consolidation or Distribution jobs. Re-checks the hash of a partly downloaded ...!sync file before moving it to its destination location. If enabled, increases disk and network load. File will be re-downloaded if "Disable differential sync" in Agent Profile is True
priority_peers	-	Made visible in a job wizard in Resilio Active Everywhere v4.0.0 See it as an arbitrary Agent in mesh. Especially valid if Selective Sync is used on other Agents. The arbitrary Agent must not have Selective Sync enabled as it will keep all the files and will confirm receiving files to others. Users may now be confident that files are there and clear them off their workstations to free up some space. For v.pre-4.0 add custom parameter priority_peers with Agent ID as value in Agent Profile. Agent ID can be learned from the agent details. If several agents need to be defined, use semicolon (;) as separator.
download_priority	0, special	It works on receiving agent only when it selects files for download. 0 - no priority 1 - prioritize newer 2 - prioritize older Also it's limited by capacity of download queue which is currently 50,000 items, i.e. agent selects max 50,000 files to download and sorts them by given priority. For this parameter to work, file system notifications must be working. Cloud storages and some of Linux-based systems and storages don't support file system notifications. Read more here.
prioritize_initial_indexing_mode	1	The value is bitmask and sets priority for building file indexes before syncing. By default agent prioritizes indexing only for initial rescan and only when lazy_indexing is enabled. It's possible to enable priority for every rescan after restart and ignore lazy indexing state (but if it turned off, time spent for periodic scan can increase significantly) 0 - OFF 1 - initial rescan (for newly created jobs) 2 - first rescan (agent Agent restart) 4 - ignore lazy_indexing state Read more here.
transfer_job_prefs_folder_name	-	Allows two agents sync the same folder. Pattern is .sync.abc Shall be added to Job profile. This needs to be done before job creation. It's ignored for already created jobs. Of two agents that are going to use same folder it's sufficient that the parameter is fed to at least one of them. Works for Distribution, Consolidation and Synchronization jobs.
db_preload_on_startup_mode	2, special	Agent will attempt to load files in "preload mode": this way database file is read sequentially, which is much faster on HDD/NFS drives. The side effect is that additional RAM is required to load the database on start (double the database file size). However, this memory is freed right after load is complete. 0 - OFF 1 - ON 2 - AUTO (means that Agent will enable preload for currently loaded share if there is more than (2 * db_size) free RAM available).
keep_expired_transfer_num	1000	Count of job run of Consolidation, Distribution or Script jobs on tab Transfers count in Agent UI.
net.utp3.ack_repeat_times	1	ACK packets will be repeated if no new data is available. This helps to keep stable speedup and operating with lower windows on lossy links. Default value is 1.
net.utp3.max_send_threads	2	Max threads to use for sendmsg() system socket API. Default value is 2.
net.utp3.max_socket_threads	2	For arm OS X default is 1. This value limits net.utp3.max_send_threads. For value N there will be N receive and N send threads per address family (ipv4 and ipv6). Not too useful unless we use single port as RPS/RSS moves all the data to single socket.
net.utp3.speed_per_worker	400	Speed threshold per sendmsg() worker, kpps. Default value is 400, which is ~550MBps at mtu 1500 and it's good for 3+GHz CPUs with >10GBps memory channel. For 2GHz, use 300-350. This parameter must conform withnet.utp3.max_send_threads. Combination max_send_threads * speed_per_worker is not linear due to cache effects, it's better to have fewer workers with more speed than more workers with low speed.
net.utp3.max_send_buf_pkts	200000, packets	Max send buffer to allocate for ZGT. Default value is 200000 (300MB at mtu 1500). Large values allow to keep sending in case there's a gap in data generation. ZGT requires two 1.7RTT frames of data to adjust speed, so setting this value too low will break ability to speed up.
net.utp3.max_recv_buf_pkts	200000, packets	Max receive buffer to allocate for ZGT. Default value is 200000 (300MB at mtu 1500). Value is similar to window size and should now be less than BDP (better BDP 1.5) or incoming packets will be dropped.
fs_fuse_storage_prefix	-	Option to set data storage path (aka cache) for virtual TSS folders on macOS Agents to point it to disk with enough free space when required. Full path to storage should be set. for an already created job, if you change the path, agent must be re-added to the job, or restarted in the job run read more about TSS here

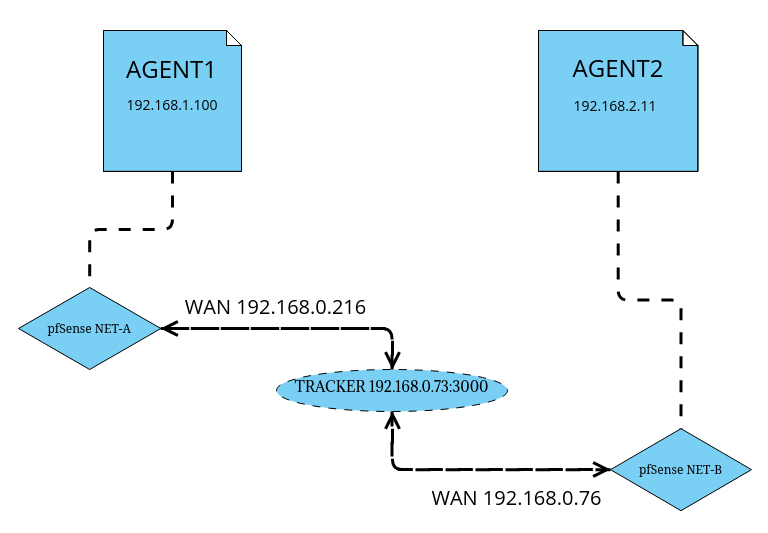

external_port	<>	It's required to configure the external port in the Agent profile in cases when the Agents are each behind a NAT or firewall (pfSense in particular). It can be any allowed port, including the default Resilio's 3839.
transfer_job_skip_files_attributes	0	Available since Resilio AE 4.2.0, applies to Storage tiering and Archival job. Use it in Job profile. Option to skip some files with a system attribute from source folder. 0 means no skipping. It's a mask (a bitwise 'or' of values) of attributes of files to skip. values can be found here File Attribute Constants (WinNT.h) - Win32 apps. A file is skipped if it has at least one attribute defined in param. For instance to skip all hidden and system files transfer_job_skip_files_attributes should be set to 2+4=6
delete_synced_files_exclusion_list	<>	Available since Resilio AE 4.2.0, applies to Storage tiering and Archival job. Use it in Job profile. Exclude certain files from multiline string, list of regular expressions defining paths to exclude from deleting from source after transfer.
